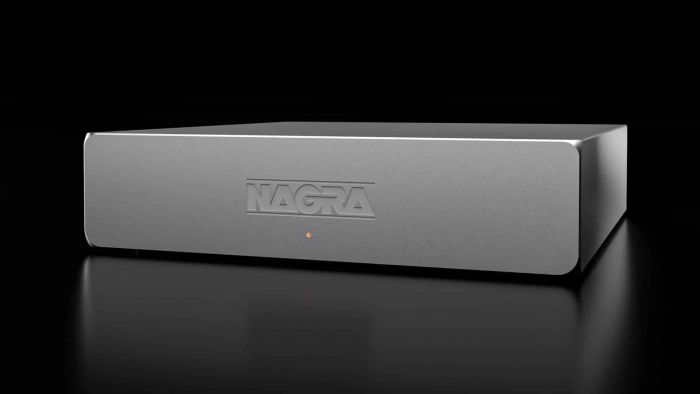

Nagra Compact Phono
฿169,000.00
SKU
Nagra Compact Phono
แบรนด์
NagraSKU
Nagra Compact PhonoInspired by the legendary microphone preamplifier in the Nagra IV-S reel-to-reel tape recorder, the phono section of the PL-P received accolades from around the world.
Since then, the phono section of the PL-P has been reincarnated several times with the Nagra VPS, the BPS, the Classic PHONO and recently the HD PHONO. While they use different technologies and components, they are faithful to the original design, centred around a Nagra-made, step-up transformer.
The Compact PHONO features:
- Vibration-controlled housing, machined from a solid billet of aluminum
- MC input on 10 dB step-up transformer (same as Nagra VPS)
- Selected transistors operating in class A
- All discrete-component topology
- Dual-mono layout
- Selectable gain of 62 / 47.5 dB
- RIAA curve
- 100 Ohm load (additional loads available from Nagra dealers)
- External 12 V DC power supply
- Ultra-high rejection ratio regulators coupled with dual-stage filter on internal power supply
Technical specifications
GENERAL
| Cartridge type: | MC |
| Input stage: | Hand-wound Nagra transformer 10 dB gain |
| Connections: | RCA inputs and outputs |
| Gain: | LOW 47.5 dB HIGH 62 dB |
| Frequency response: | 20 – 50 kHz +/- 1 dB (withing RIAA curve) |
| Signal to noise ratio*: | LOW > 80 dB @ 100 Hz HIGH > 72 dB @ 100 Hz |
| THD+N: | < 0.1% @1KHz on Lab psu |
| Crosstalk*: | LOW > 85 dB HIGH > 73 dB |
| Output impedance*: | LOW < 10 Ω HIGH < 25 Ω |
| Powering: | 12V DC |
| Power consumption: | 0.5 W |
| Operating temperature: | +15 °C to +35 °C Moderate climate +59 °F to +95 °F |
| Dimensions: | 185 x 166 x 41 mm / 7.2 x 6.5 x 1.6 inches |
| Weight: | 1.9 kg (4.1 lb.) |
* Specs on 47.5 dB gain position
