Wattson AudioSKU

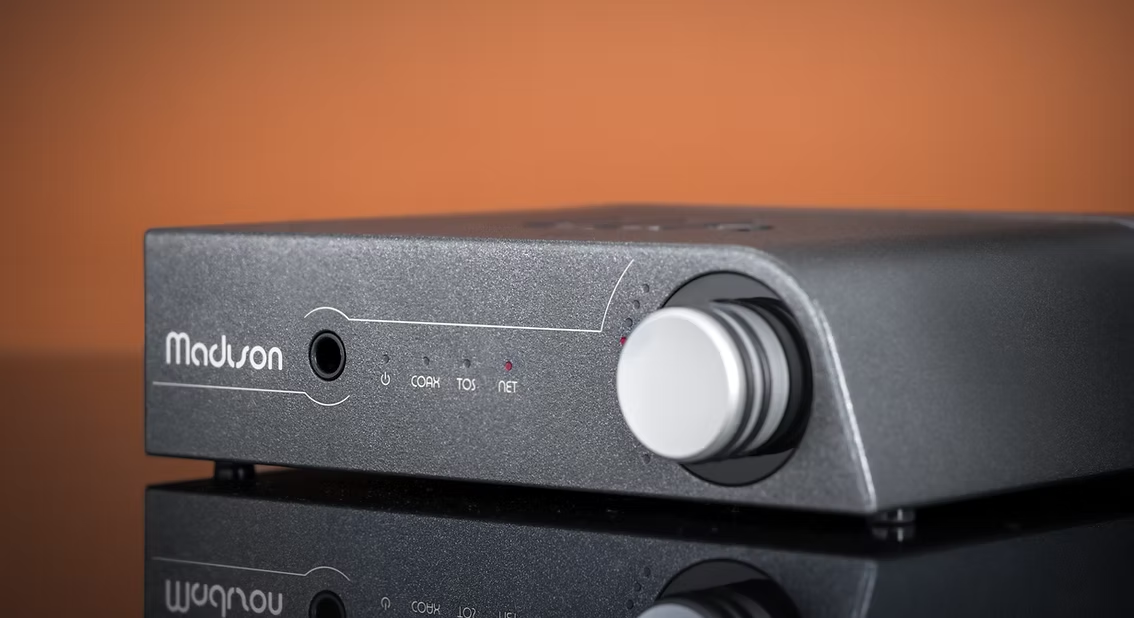

Wattson Audio MadisonThe Madison Streamer combines musically accurate streaming with a sophisticated and upgradable DSP-driven DAC, complete with digital volume control. Connect the Madison directly to your power amp for a streamlined yet high-performance music system, or pair it with your favorite pre-amp or integrated amplifier. The Madison Streamer delivers a seamless blend of technical accuracy and musical beauty, offering a listening experience that is as emotionally engaging as it is technically accurate. It is not just a product—it is a statement of Wattson Audio’s dedication to engineering excellence and an evocative musical experience.
Like all Wattson Audio components, the Madison Streamer is engineered with one unwavering vision: to deliver a musically engaging experience. Its design is pure, purpose-driven, and stripped of anything unnecessary, leaving only what serves the highest standard of audio fidelity. The result is a digital streamer that redefines expectations in its category.
The Madison Streamer employs a pair of high-performance op-amps per channel, forming a robust, space-efficient, and cost-effective analog output stage. Designed with both versatility and fidelity, it offers balanced XLR and single-ended RCA connections to integrate seamlessly into any high-performance system. Every circuit stage within Madison benefits from the substantial onboard power supply filtering and reservoir capacitance, ensuring pristine signal integrity and consistent performance.
An extraordinary musical performance at an accessible price requires a meticulous approach to engineering—an art of precision and purpose. It demands a relentless focus on what truly matters, selecting only the functions that serve the music and implementing them with absolute care. It's about knowing what to include, what to exclude, and how to achieve the highest level of performance. This is the essence of Wattson Audio's high-technology design philosophy: doing everything with intention and nothing without purpose.
Network streaming resolution: PCM up to 32-bit 384kHz, DSD up to 256x (11,2896MHz)
S/PDIF input resolution: PCM up to 24-bit 192kHz
RCA output level (0dB FS): 2,0V RMS
XLR output level (0dB FS): 4,0V RMS
Signal-to-noise, weighted (SNR-A): > 120dB
Harmonic distortion (THD+N, 0dB FS): < 0,001%
Headphone output: 2x 150mW on 32Ω, 2x 50mW on 150Ω, 2x 10mW on 600Ω
Network input: 100Mbit/s Ethernet

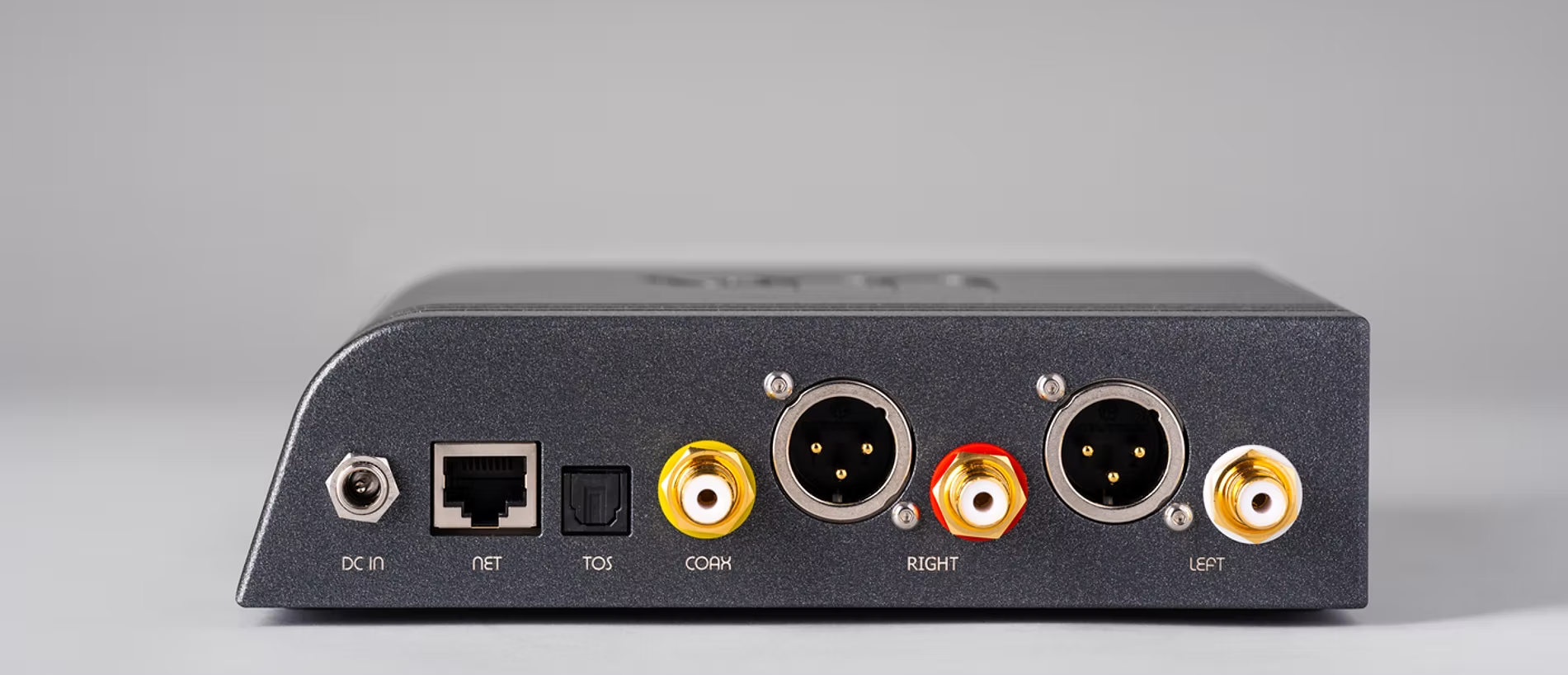

Digital inputs: 1x S/PDIF on RCA connector, PCM and 1x S/PDIF on TOSLink
Analog outputs: 1x unbalanced on RCA connectors and 1x balanced on XLR
Headphone output: 6.35mm Jack connector
Dimensions (W x D x H): 6,9 x 7,3 x 2,1in (174 x 185 x 52mm)
Weight: 2,37 lbs (1075g)
Power supply: 5V DC, external, medical grade
Power consumption: 50mW (idle), 3,5 W (playing)
